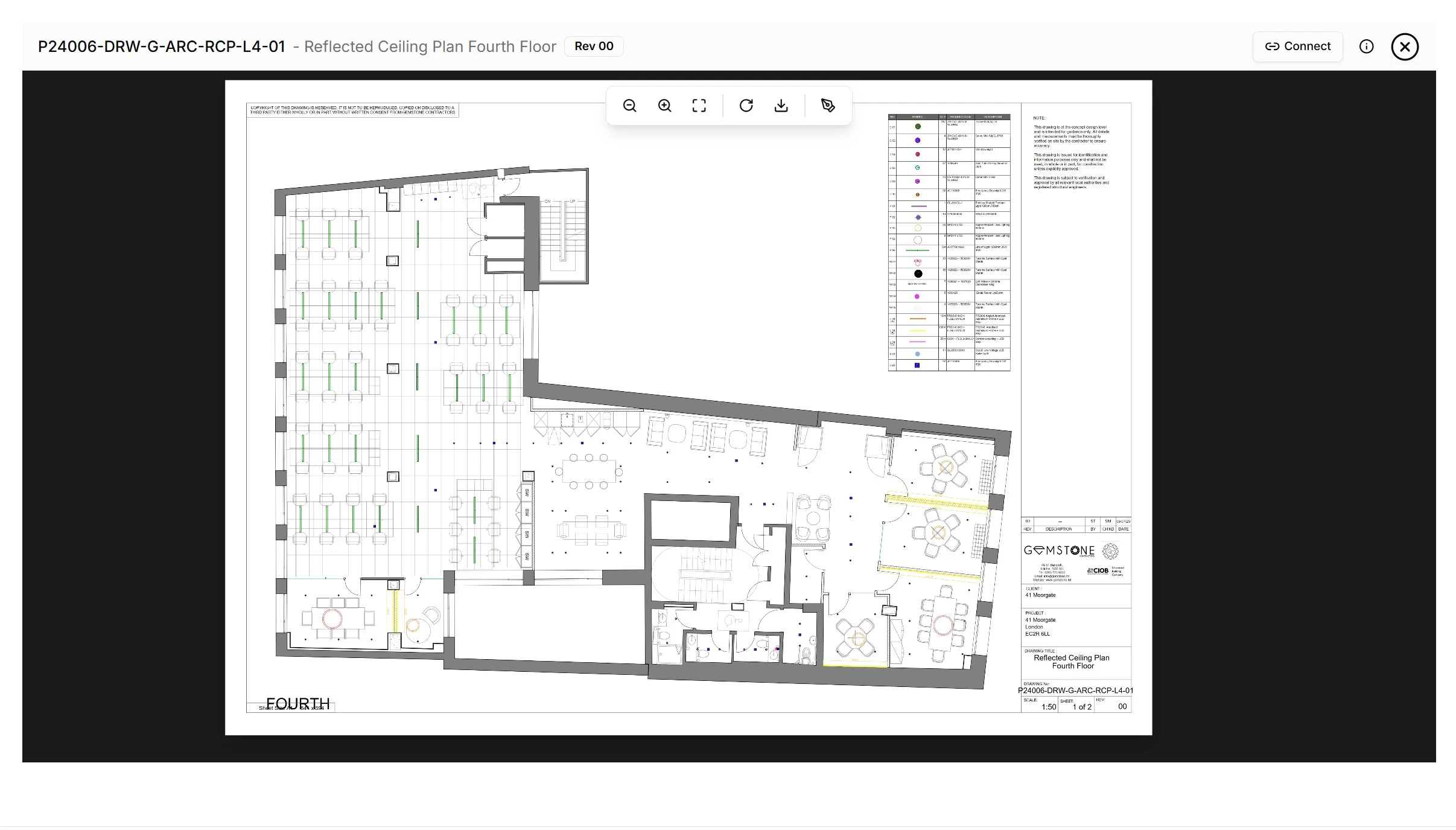

How does the AI drawing registration work?

When you upload drawings (PDF, PNG, or JPG), the AI reads the title block and extracts the drawing number, title, revision, discipline, scale, and originator. You review the extracted data, make any corrections, and publish to your register. Fifty drawings can be registered in about five minutes.

Can I track drawing revisions automatically?

Yes. When you upload a new revision, the system detects that a drawing with the same number already exists and creates a supersession record. The previous revision is marked as superseded and the new one becomes current. The full revision history is always accessible.

How does the programme AI work?

Tell the agent your project type and it generates a complete work breakdown structure — hierarchy, dependencies, milestones, cost codes — in one call. Once the programme is live, the agent acts as your planning co-pilot: find delayed tasks, calculate the critical path, run what-if analyses, or check health status. Read-only analysis is available from the main AI chat; write tools are only in the embedded Programme panel.

How do specifications power the AI?

On upload, your specifications are processed by OCR, then chunked, embedded, and stored in your database. Every clause, requirement, and performance standard becomes searchable by meaning — not just keywords. This knowledge layer powers the AI across the platform: scope of works generation, project queries, and drawing analysis all draw on your spec documents.

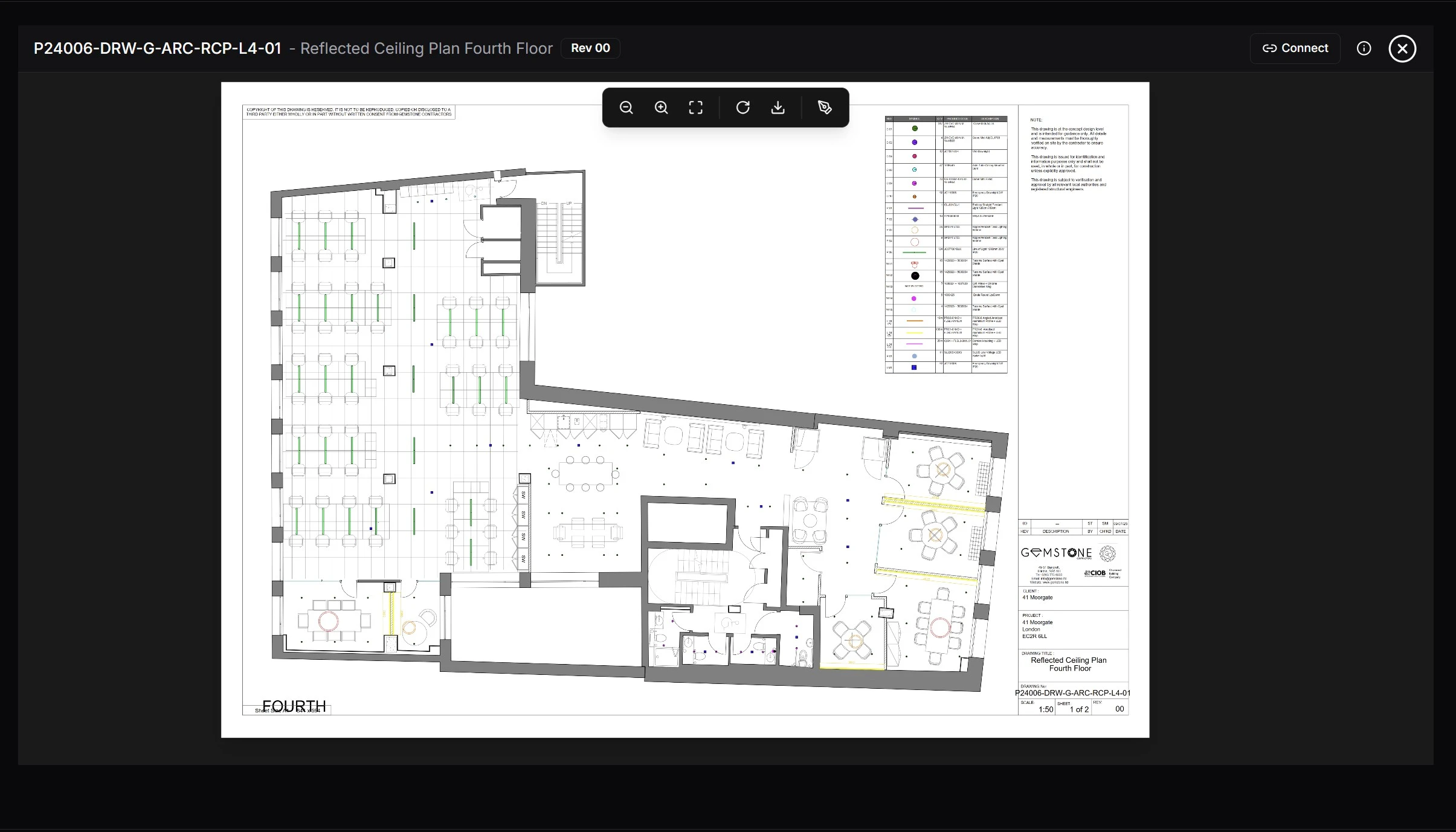

What happens to a drawing supplied as a DWG?

Attach the DWG to the sheet and the geometry is read server-side: layers become a legend, rooms become named spaces, and measurements come from the vectors rather than a scaled PDF. The PDF stays the picture; the DWG supplies the numbers.

Can I export documents for external parties?

Yes. Drawings can be exported with markup annotations as flattened PDFs. RFIs, correspondence, and submittals export as documents on your letterhead. Drawing registers export to Excel. Everything is designed to be shared with consultants, subcontractors, and the project team.

Project Management - Plan It. Build It. Control It.

Construction AI·Larkspur House › Specifications › NBS K10

Plasterboard dry linings — NBS K10ProcessedVerified

Specification · Rev P02 · 40 pages · From Laird Studio · 8 sections

Construction AI

DownloadOpen in new tabConnectThumbnailsSections

Plasterboard dry linings

NBS K10 — particular specification · Larkspur House · Rev P02 · Laird Studio

Search by meaning

“what fire rating do the corridor partitions need?”

610 Fire-rated systems, p.8 — 60 minutes to corridors and stair enclosures; 30 minutes elsewhere. Cross-ref 310 Partitions, p.4.

Sections · 8 main

110Intentp.1

210Plasterboardp.2

215Fixings and adhesivesp.3

310Partitionsp.4

315Bulkheads and ceiling marginsp.5

320Access panelsp.6

420Jointing and finishingp.7

610Fire-rated systemsp.8

Linked records · RFI #004 · LH-LRD-ZZ-01-DR-A-2301

Every clause read once, then answered by meaning

A specification is read on upload: sections detected, confirmed by you, and the text embedded. From then on the platform answers questions from it, and every scope, RFI and takeoff can cite the clause.

Sections navigate the PDF; the viewer opens at the clause, not page one.
Search by meaning across every specification on the project, not by keyword.
Connect links the clause to the RFI, the drawing and the submittal that rely on it.

How specifications power the AI

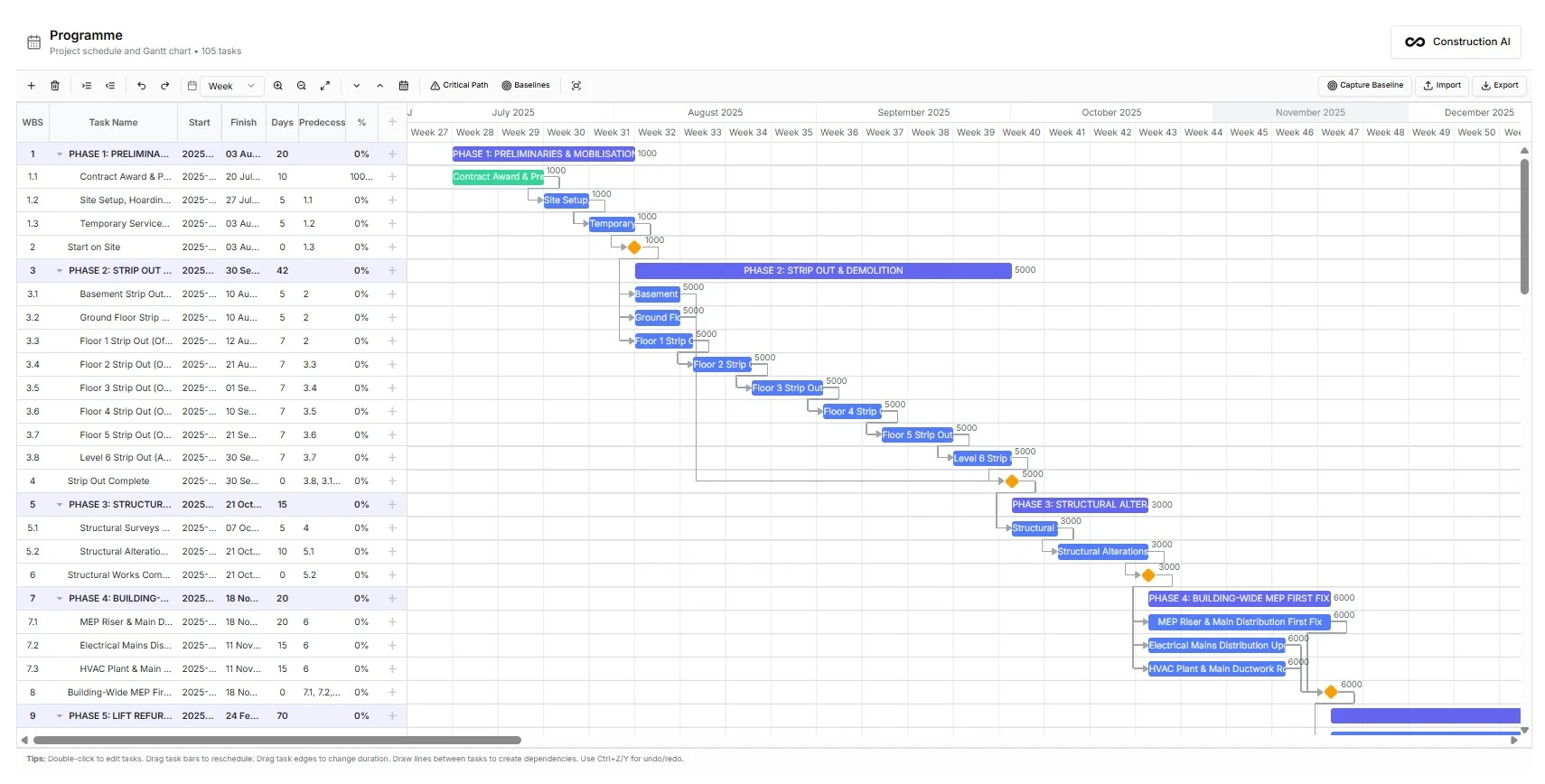

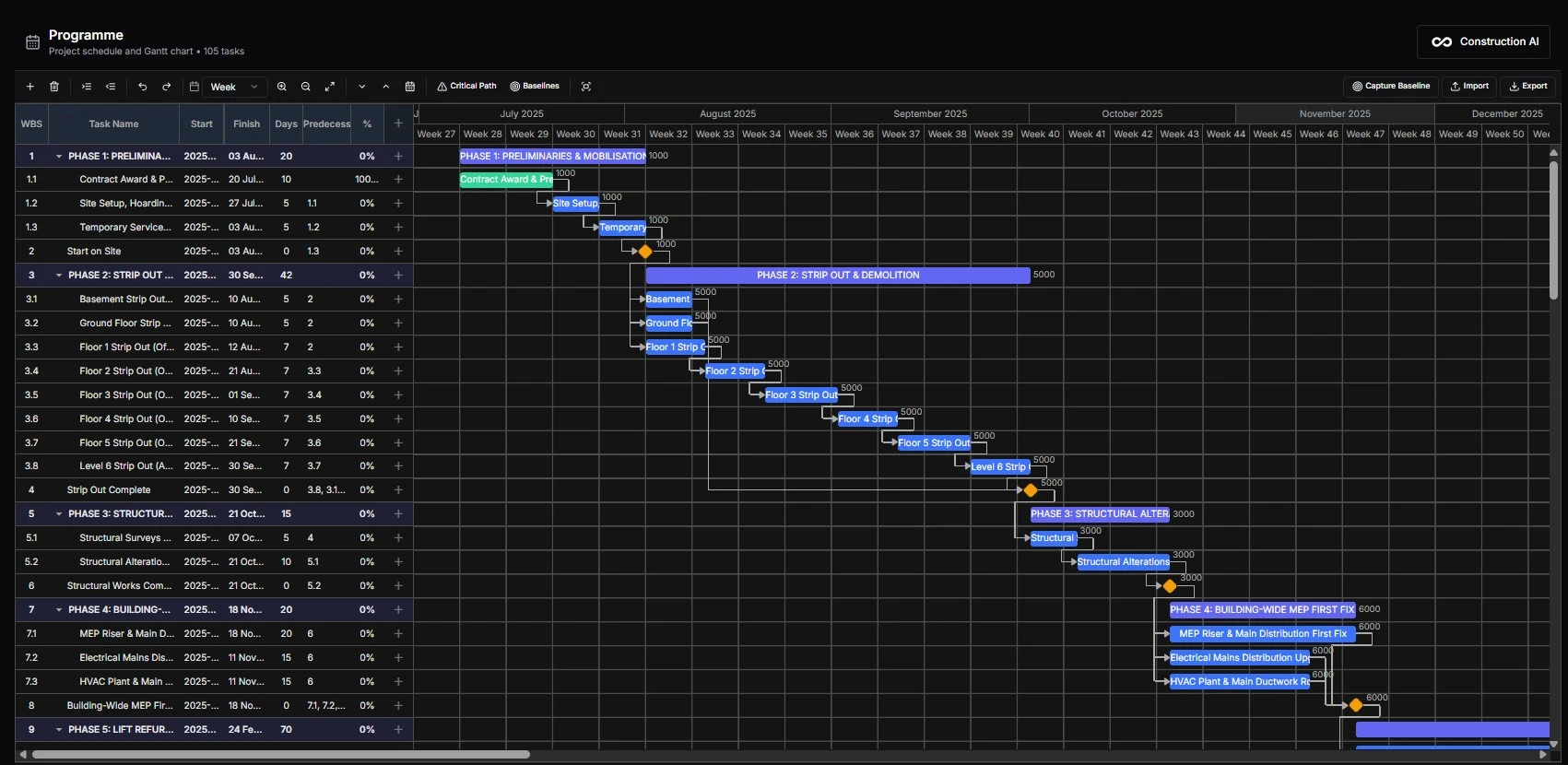

Construction AI·Larkspur House › Programme

Programme

Project schedule and Gantt chart • 0 tasks

Construction AI

+Week ▾⚠ Critical PathBaselinesExport

WBSTask NameStart%

1PHASE 1: MOBILISATION01 Sep

1.1Possession and set-up01 Sep100%

2PHASE 2: STRIP OUT08 Sep

2.1Strip-out, levels 1–308 Sep0%

3PHASE 3: PLANT DECK15 Sep

3.1Plant deck steelwork15 Sep0%

3.2AHU lifts and installation13 Oct0%

4PHASE 4: FIT-OUT29 Sep

4.1Partitions and ceilings29 Sep0%

4.2Raised access floors27 Oct0%

4.3M&E first and second fix03 Nov0%

4.4Finishes and decorations14 Dec0%

5Commissioning and handover25 Jan0%

6Practical completion01 Mar

Sep 2026

Oct

Nov

Dec

Jan 2027

Feb

W36

W40

W44

W48

W52

PHASE 1: MOBILISATION

Possession and set-up

PHASE 2: STRIP OUT

Strip-out

PHASE 3: PLANT DECK

Plant deck steelwork

AHU lifts and installation

PHASE 4: FIT-OUT

Partitions and ceilings

Raised access floors

M&E first and second fix

Finishes and decorations

Commissioning and handover

The programme builds from the brief, then keeps itself honest

The Programme Agent writes the work breakdown, the durations and the dependencies from the project brief, and validates it. From there it is a Gantt you own: revisions, a baseline, delay analysis, critical path.

Generate from the brief, validate, then edit like any Gantt: drag, link, indent.
Save revisions and hold a baseline; delay analysis compares them.
Ask the agent for the critical path, the slipped tasks or a what-if.

How the programme AI works

Construction AI·Larkspur House › RFIs › RFI #004

RFI #004 Responded

Reception feature ceiling — confirm omission before bulkhead is framed

Construction AIReviseExport PDF

Is the reply satisfactory?Close RFICreate revision

Northgate Contracts Ltd

Unit 4, Riverside Works · Manchester

RFI #004

P26001 · Larkspur House · for Ardent Estates

Reception feature ceiling — confirm omission before bulkhead is framed

ToR. Menon (Laird Studio)

FromSam Okafor

Date raised19 Aug 2026

Due date26 Aug 2026

LocationLevel 1 reception, grid C/7

Cost code4000 · Drylining

Cost impactYes · CCI 003

Programme impactYes · on the critical path

DrawingsLH-LRD-ZZ-01-DR-A-2301 rev C

SpecificationK10/315 Bulkheads

Ball withSam Okafor

Copies toAlan Pryor, Ardent Estates

Question from Sam Okafor · 19 Aug 2026, 10:00

A-2301 rev C omits the feature ceiling at reception but the door schedule rev B still carries the ceiling-mounted closers. Please confirm the omission is instructed before we frame the bulkhead on Monday 24 August.

Reply from R. Menon, Laird Studio · 22 Aug 2026, 10:00

Confirmed — the feature ceiling is omitted under AI-023. Proceed with the plasterboard bulkhead to detail A-2104/07. The door schedule will be corrected at rev C.

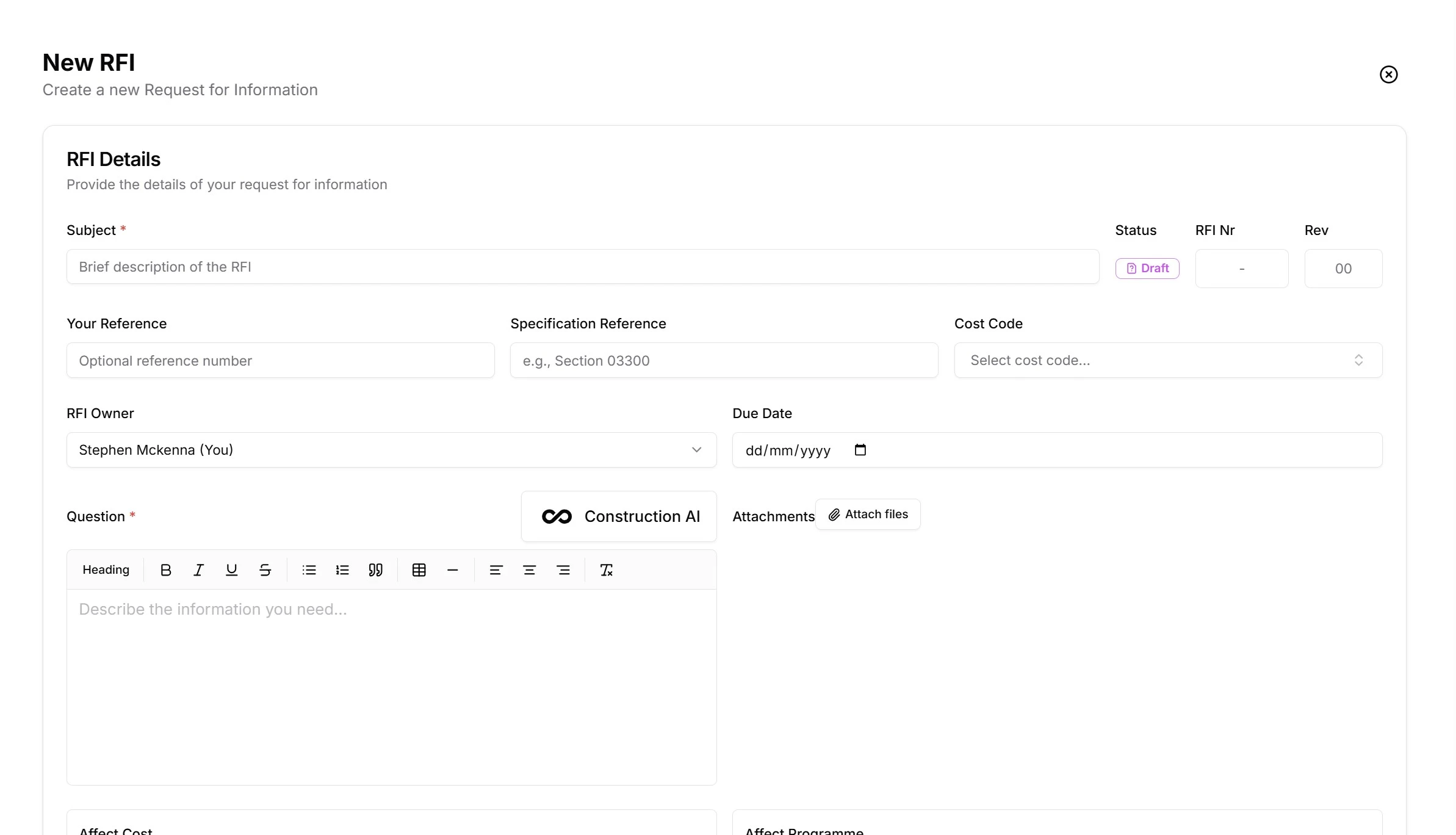

The RFI is the document, not a form that prints one

Raise it from the drawing you are looking at, with the clause and the markup attached. It reads as the receiver will read it, on your letterhead, and the reply lands on the same page.

Facts in two columns: cost code from the work package, cost and programme impact, the drawings and the clause.
Ball with moves on issue, on reply and on referral; the register shows age and due.
Close, or create a revision that asks again with the reply on record. Export as a PDF.

Export for external parties

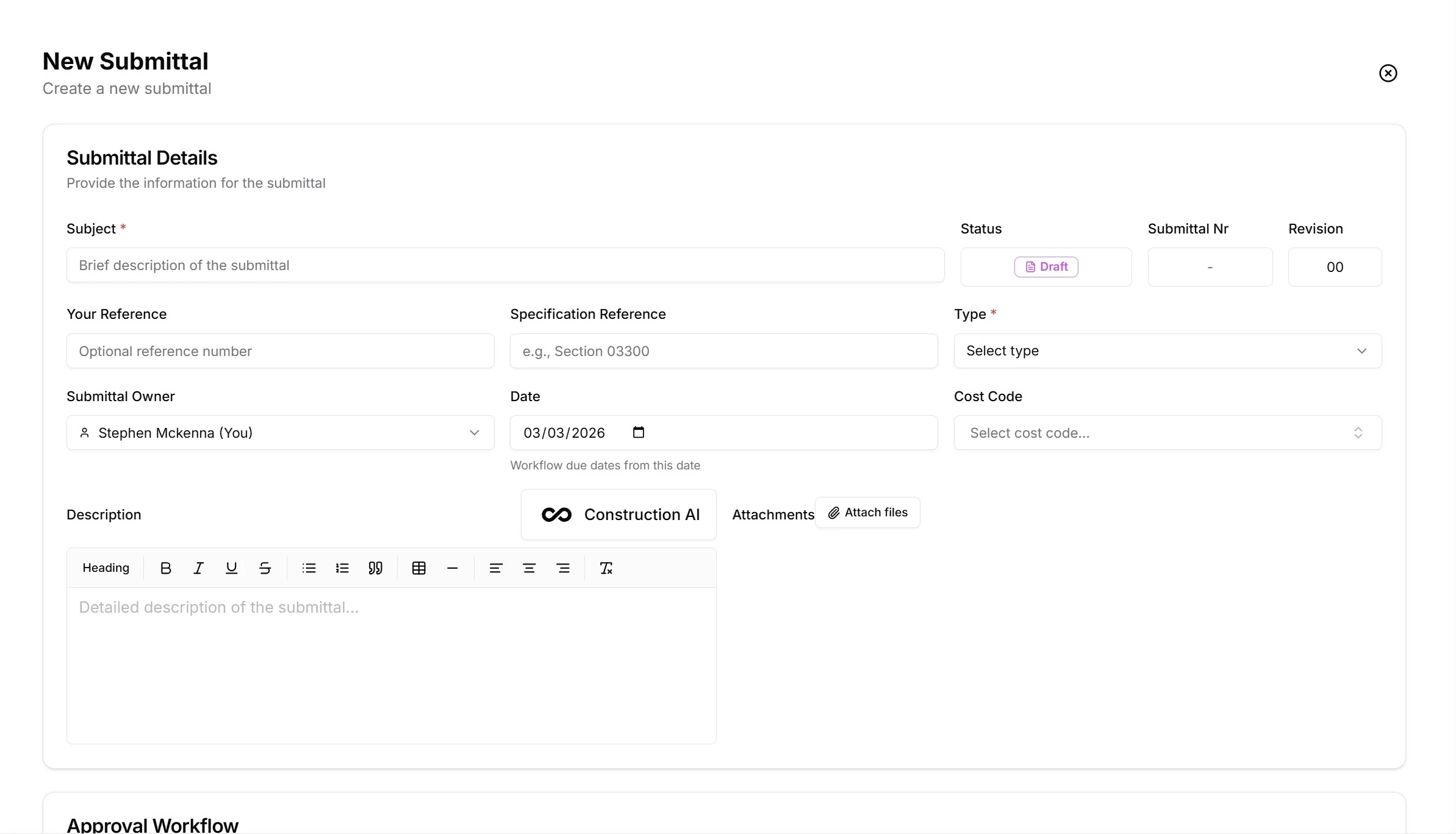

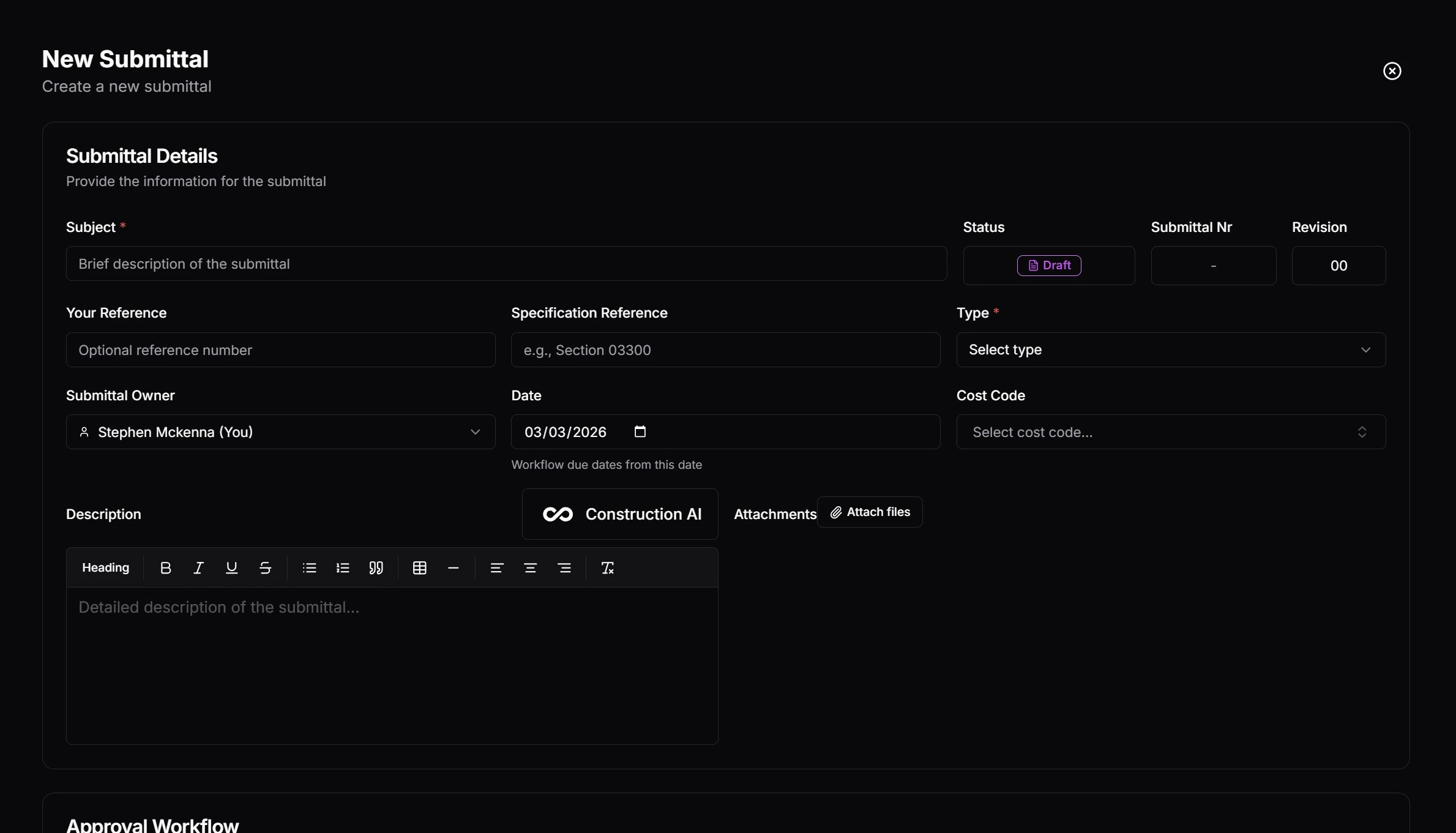

Construction AI·Larkspur House › Submittals

Submittals

Larkspur House · 18 on the register · 2 awaiting the architect

Construction AI+ New submittal

RefTitleSpecStatusDue

SUB-014Suspended ceiling system — technical data · Halliwell DryliningK40/210Approved21 Aug

SUB-015Fire-rated partition test evidence · Halliwell DryliningK10/610Approved as noted28 Aug

SUB-016AHU-01 and AHU-02 — selection and O&M · Marlow MechanicalT60/320Revise and resubmit04 Sep

SUB-017Carpet tile samples — meeting rooms · Pennine FloorsM50/450Under review11 Sep

SUB-018Ironmongery schedule — final · Norton & BellP21/110Draft18 Sep

SUB-016 · AHU-01 and AHU-02 — selection and O&M

Revise and resubmit

Rev A · from Marlow Mechanical, 26 Aug · reviewed by R. Menon, Laird Studio, 2 Sep · spec T60/320 · programme: plant deck AHU set-down 21 Sep

Reviewer’s comment. Selection shows 4.2 m³/s against the 4.8 m³/s in T60/320 clause 3.4. Resubmit with the fan curve at the design duty and the acoustic data for the roof-level attenuators.

Rev B due 11 Sep · 10 days before set-down Programme riskExport PDF

Submittals tracked against the spec and the programme

Each submittal cites the specification clause it answers and the programme task it gates. The reviewer’s comment lands on the document; a resubmission is a revision, not a new record.

Approved, approved as noted, revise and resubmit: the status the architect gave, on the register.
Due dates measured against the task on the programme, so a late resubmission reads as a programme risk.
Every submittal exports as a document on your letterhead.

Site management from here

Plan it. Build it.
Control it.

The drawings above. The rest of the project, below.

Every clause read once, then answered by meaning

The programme builds from the brief, then keeps itself honest

The RFI is the document, not a form that prints one

Submittals tracked against the spec and the programme
